Code: ' setup the default comm port settings MSComm1.CommPort = 4 ' comm port 4 MSComm1.RThreshold = 1 ' use 'on comm' event processing MSComm1.Settings = '9600,n,8,1' ' baud, parity, data bits, stop bits MSComm1.SThreshold = 1 ' allows us to track Tx LED MSComm1.InputMode = comInputModeBinary ' binary mode MSComm1.PortOpen = True ' open the portaand. You don't need Timer event prosessing code at all, as Oncomm event is called by interrput, so put the received data handling code from timer event procedure to oncomm event procedure. Code: Private Sub MSComm1_OnComm() Static sBuff as String 'Note!

Komunikasi Serial Arduino Vb

Binarymode needs StrConv sBuff = sBuff & StrConv(MSComm1.Input, vbUnicode) 'Note received data concatenated, remove if not needed. If MyData = 1 Then Label3.Caption = Val(Label3.Caption) + Val(1) If Label3.Caption = 60 Then Label2.Caption = Val(Label2.Caption) + Val(1): Label3.Caption = 0 If Label2.Caption = 60 Then Label1.Caption = Val(Label1.Caption) + Val(1): Label2.Caption = 0 End Sub ' Note! OnComm event needs error handling code. 'and when packet fully captured, process it and empty sBuff. Code: Private Sub MSComm1_OnComm() Static sBuff As String ' buffer for holding incoming characters Const MTC As String = vbCrLf ' message terminator characters (ususally vbCrLf) Const LenMTC As Long = 2 ' number of terminator characters, must match MTC Dim iPtr As Long ' pointer to terminatior character Dim PacketData As String Static PacketCount As Long ' OnComm fires for multiple Events ' so get the Event ID & process Select Case MSComm1.CommEvent ' Received RThreshold # of chars, in our case 1. Case comEvReceive ' read all of the characters from the input buffer ' StrConv() is required when using MSComm in binary mode, sBuff = sBuff & StrConv(MSComm1.Input, vbUnicode) ' a typical application would buffer characters here waiting for ' an end of message sequence like vbCrLf, that's why sBuff is declared ' as Static and the statement above sets sBuff = sBuff & MSComm1.Input ' When an end of message string is received the messages are passed ' through a parser routine.

Here, we show processing a character at ' time and 'message parsing' options. MEssage parsing varies depending ' on what you're doing but would look something like this: If bMessageMode Then ' in message mode we wait for the message terminator ' before processing. This is typcal of a command & control ' program that interfaces with an external device and ' must decode data coming from the device. Most devices will ' use a start / end sequennce to ID each message. You ' would process the messages by calling your message parser and ' passing the message just like the message is passed to the ' PosTerminal routine below. Some device's use character count ' to ID messages instead of start/end characters, this method is ' too machine specific to be shown here.

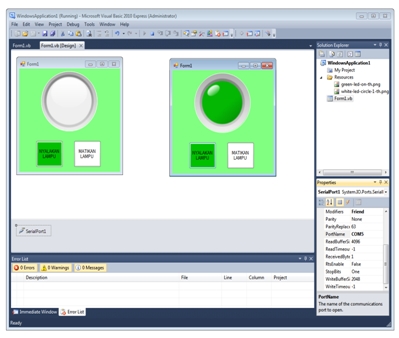

Tutorial Komunikasi Serial SFE - Duino Dengan Visual Basic. Doc 1 Serial Port Using Visual Basic. NET and Windows Introduction The serial (COM) port is one of the simplest. Visual basic 2010 arduino serial.

' look for message terminator iPtr = InStr(sBuff, MTC) ' process all queued messages Do While iPtr ' pass each message to the message parser ' in our case, it just gets displayed. To decode ' specific messages, you would pass the string ' Mid$(sBuff, 1, iPtr + LenMTC - 1) ' to a message decoder routime PacketCount = PacketCount + 1 If bStarted Then 'Get device name Dim iPos As Integer Dim iPosEnd As Integer PacketData = Mid$(sBuff, 1, iPtr + LenMTC - 1) iPos = InStr(PacketData, 'MYPacket') 'Keep this 'packet detection' data as short as possible. If iPos Then PacketData = Mid(PacketData, iPos, InStr(PacketData, vbLf) - 2) lblDevice.Caption = PacketData bStarted = False End If End If PostTerminal Mid$(sBuff, 1, iPtr + LenMTC - 1) lblError.Caption = PacketCount 'Debug.Print Mid$(sBuff, 1, iPtr + LenMTC - 1) 'Debug.Print PacketCount ' remove from the message queue sBuff = Mid$(sBuff, iPtr + LenMTC) ' look for another message iPtr = InStr(sBuff, MTC) Loop Else ' in character mode we just pass each character to ' the parser as it comes in. The parser is responsibe ' for collecting the characters and assembling any messages. ' For our simple terminal example, character mode works fine. PostTerminal sBuff sBuff = vbNullString End If ' flash the Rx LED Set imgRx.Picture = imgLed(GreenOn).Picture tmrRxLED.Enabled = True ' Change in the CD line.

Case comEvCD SetLEDs ' Change in the CTS line. Case comEvCTS SetLEDs ' Change in the DSR line. Patch No Cd Monster Garage Door. Case comEvDSR SetLEDs ' Change in the Ring Indicator. Case comEvRing ' An EOF charater was found in the input stream Case comEvEOF ' There are SThreshold number of characters in the transmit buffer.

Case comEvSend Set imgTx.Picture = imgLed(GreenOn).Picture tmrTxLED.Enabled = True ' A Break was received. Case comEventBreak lblError = 'Break' tmrClearError.Enabled = True ' Framing Error Case comEventFrame lblError = 'Framing' tmrClearError.Enabled = True ' Data Lost. Case comEventOverrun lblError = 'Overrun' tmrClearError.Enabled = True ' Receive buffer overflow. Case comEventRxOver lblError = 'Overflow' tmrClearError.Enabled = True ' Parity Error. Case comEventRxParity lblError = 'Parity' tmrClearError.Enabled = True ' Transmit buffer full. Case comEventTxFull lblError = 'Tx Full' tmrClearError.Enabled = True ' Unexpected error retrieving DCB] Case comEventDCB lblError = 'DCB Error' tmrClearError.Enabled = True End Select End Sub Private Sub tmrTxLED_Timer() 'Set interval fex.

To 100 Set imgTx.Picture = imgLed(GreenOff).Picture tmrTxLED.Enabled = False End Sub Private Sub tmrClearError_Timer() 'Set interval fex. To 500 lblError = ' tmrClearError.Enabled = False End Sub. Code: Private Sub Form_Load() MSComm1.CommPort = 4 MSComm1.RThreshold = 1 MSComm1.InputLen = 1 MSComm1.Settings = '9600,n,8,1' MSComm1.SThreshold = 1 MSComm1.InputMode = comInputModeBinary MSComm1.PortOpen = True Timer1.Enabled = False End Sub Private Sub MSComm1_OnComm() 'MSComm1.Enable = True MyData = Form1.MSComm1.Input Static sBuff As String 'Note! Binarymode needs StrConv sBuff = sBuff & StrConv(MSComm1.Input, vbUnicode) 'Note received data concatenated, remove if not needed.

If MyData = 1 Then Label3.Caption = Val(Label3.Caption) + Val(1) If Label3.Caption = 60 Then Label2.Caption = Val(Label2.Caption) + Val(1): Label3.Caption = 0 If Label2.Caption = 60 Then Label1.Caption = Val(Label1.Caption) + Val(1): Label2.Caption = 0 End If End Sub ' Note! OnComm event needs error handling code. 'and when packet fully captured, process it and empty sBuff.

Komunikasi Serial Arduino Vb

Utorrent Free Download For Windows 7 64 Bit Filehippo. Private Sub Timer1_Timer() 'Label3.Caption = Val(Label3.Caption) + Val(1) 'If Label3.Caption = 60 Then 'Label2.Caption = Val(Label2.Caption) + Val(1) 'Label3.Caption = 0 'If Label2.Caption = 60 Then 'Label1.Caption = Val(Label1.Caption) + Val(1) 'Label2.Caption = 0 End If End If End Sub. Yeah, most of these experimenter boards built around microcontrollers and minimal SOCs include hardware and firmware support for TTL or RS-232/422 level COMn: port pins and/or virtual COMn: port device emulation over USB. Many people playing with them end up totally confusing USB devices with legacy serial devices as a result.

Most of them aren't formally trained programmers either, so they tend to make quite a dog's breakfast of copy/pasted snippets trying to create a VB6 program as well. MSComm.InputMode = comInputModeBinary means that the.Input property returns a Byte array value without translation. Text mode means you get back ANSI converted to Unicode as a String value. The.Output property always accepts either a String or a Byte array. When you use a String it will always treat it as Unicode and translate it to ANSI before sending.

When you use a Byte array no translation is performed. The String translation takes place because all legacy serial text I/O is defined as ASCII, even though a port opened as 8-bit can have ANSI (or even DOS OEM, EBCDIC, UTF-8, etc.) shoveled over it as well. Pretty darned simple when you get right down to it. Code: Private Sub Form_Load() Form1.Caption = 'App2' With MSComm1.Handshaking = 2 - comRTS.RThreshold = 1.RTSEnable = True.Settings = '9600,n,8,1'.SThreshold = 1.PortOpen = True ' Leave all other settings as default values. End With Text1.Text = ' End Sub Private Sub Form_Unload(Cancel As Integer) MSComm1.PortOpen = False End Sub Private Sub MSComm1_OnComm() Dim InBuff As String Select Case MSComm1.CommEvent ' Handle each event or error by placing ' code below each case statement. ' This template is found in the Example ' section of the OnComm event Help topic ' in VB Help.

' Errors Case comEventBreak ' A Break was received. Case comEventCDTO ' CD (RLSD) Timeout.

Case comEventCTSTO ' CTS Timeout. Case comEventDSRTO ' DSR Timeout. Case comEventFrame ' Framing Error. Case comEventOverrun ' Data Lost.

Case comEventRxOver ' Receive buffer overflow. Case comEventRxParity ' Parity Error. Case comEventTxFull ' Transmit buffer full. Case comEventDCB ' Unexpected error retrieving DCB] ' Events Case comEvCD ' Change in the CD line. Case comEvCTS ' Change in the CTS line. Case comEvDSR ' Change in the DSR line. Case comEvRing ' Change in the Ring Indicator.

Case comEvReceive ' Received RThreshold # of chars. InBuff = MSComm1.Input Call HandleInput(InBuff) Case comEvSend ' There are SThreshold number of ' characters in the transmit buffer.

Case comEvEOF ' An EOF character was found in the ' input stream. End Select End Sub Sub HandleInput(InBuff As String) ' This is where you will process your input. This ' includes trapping characters, parsing strings, ' separating data fields, etc. For this case, you ' are simply going to display the data in the TextBox.

Text1.SelStart = Len(Text1.Text) Text1.SelText = InBuff End Sub. • → *new* Get practical advice and learn best practices for moving your applications from RDBMS to the Couchbase Engagement Database. (sponsored) • → Learn to shorten database dev cycles, integrate code quality reviews into Continuous Integration workflow, and deliver code 40% faster.
